Reaction Mechanism: Synthesis of an Aromatic Dye
Back To Erik's Chemistry: Main Page

Disclaimer: Information presented here is believed to be correct. However, the author takes no responsibilty for any damages due to errors contained in this document.

Part 1

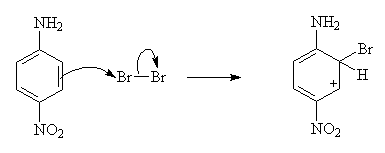

rxn1 pt 1.gif - 1306 Bytes

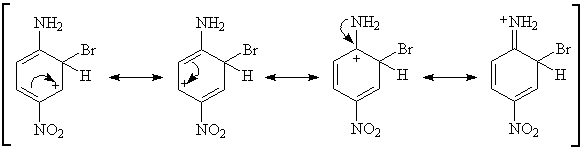

rxn1 intermediate.gif - 2582 Bytes
rxn1 pt 2.gif - 1116 Bytes
Part 2
rxn2 pt 1.gif - 478 Bytes

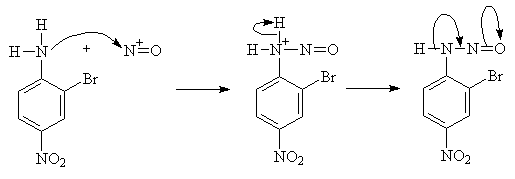

rxn2 pt 2.gif - 2149 Bytes

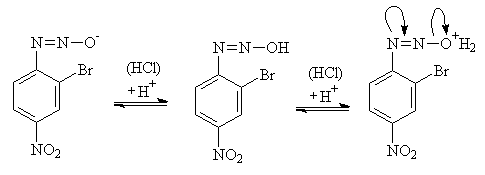

rxn2 pt 3.gif - 2101 Bytes
rxn2 pt 4.gif - 1166 Bytes

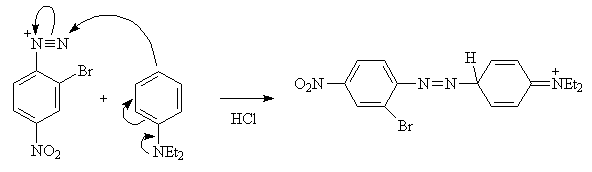

rxn2 pt 5.gif - 2091 Bytes

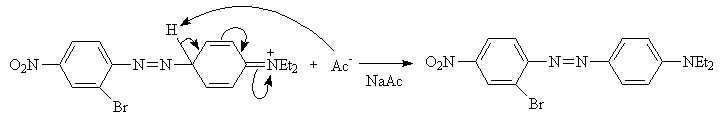

rxn2pt6b.gif - 1956 Bytes
Part 3
rxn3pt1.gif - 966 Bytes

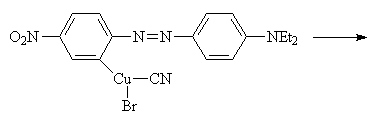

rxn3pt2.gif - 993 Bytes
rxn3pt3.gif - 909 Bytes
